Configuration and post installation?

Each post install step is reversible at this point, the steps are explained later in the documentation.#

Quick Links#

start by choosing some options!#

1 - Admin section or not!#

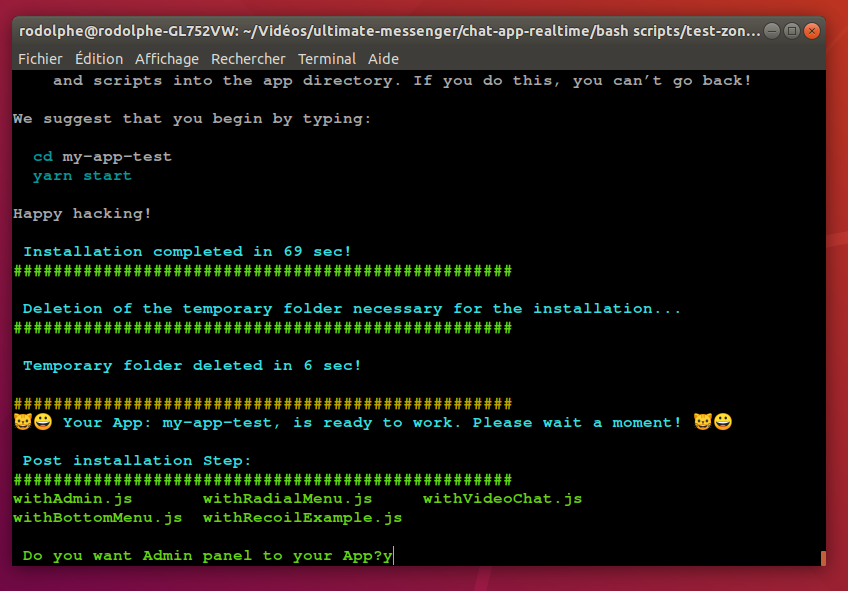

First, the script asks you if you want an administrator panel for your App. In this example, I answer yes. alt text

2 - VideoChat or not!#

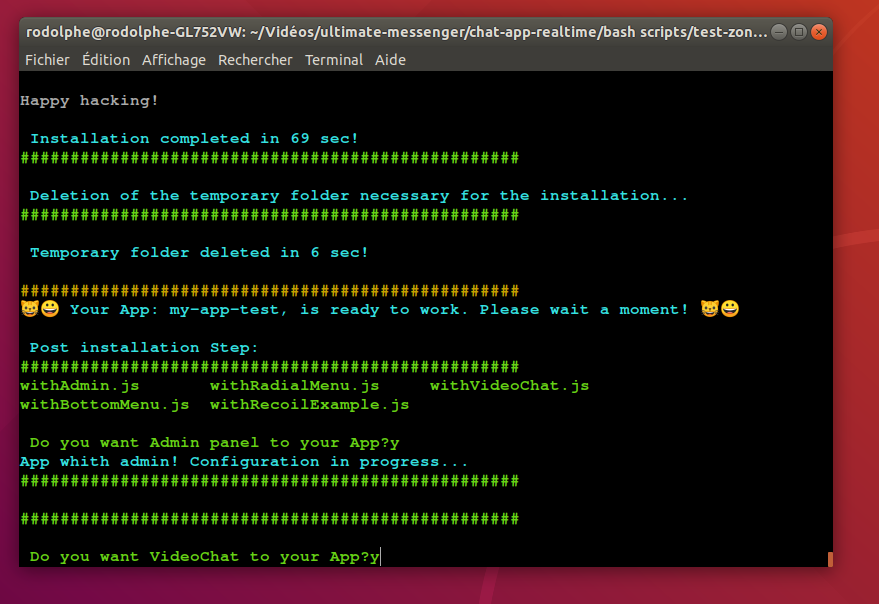

secundo, the script asks you if you want videoChat by default for your App. In this example, I answer yes. alt text

3 - Recoil example or not!#

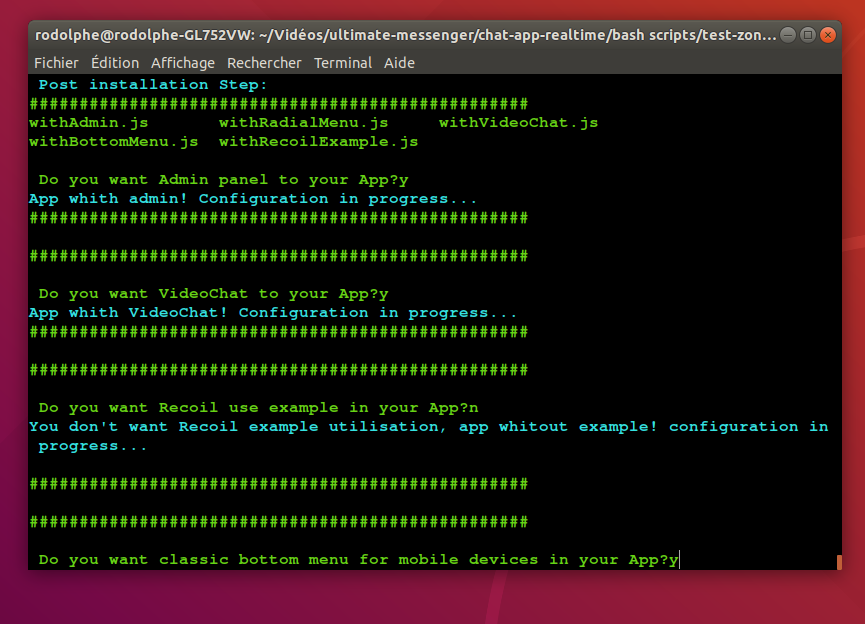

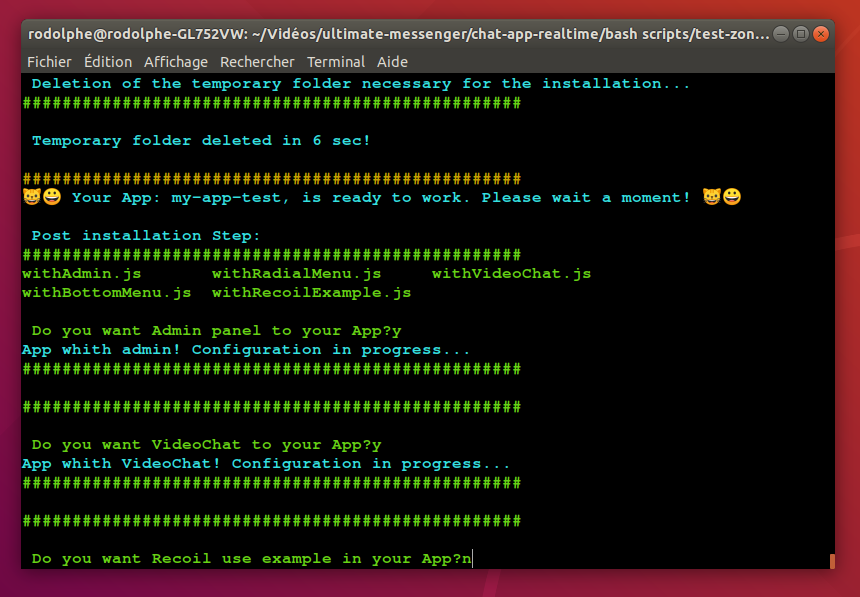

Then, do you want an example of using recoil (atom and selector), I answer no. alt text

4 - Mobile devices menu or not!#

Then comes the choice of the menu for the mobile devices,

you have two choices:

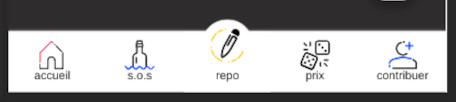

Classic Bottom menu#

alt text

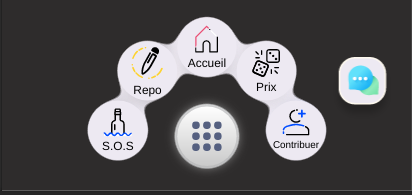

Radial burger menu#

alt text

(Live demo is accessible via the demo links on the pwa version installation page).

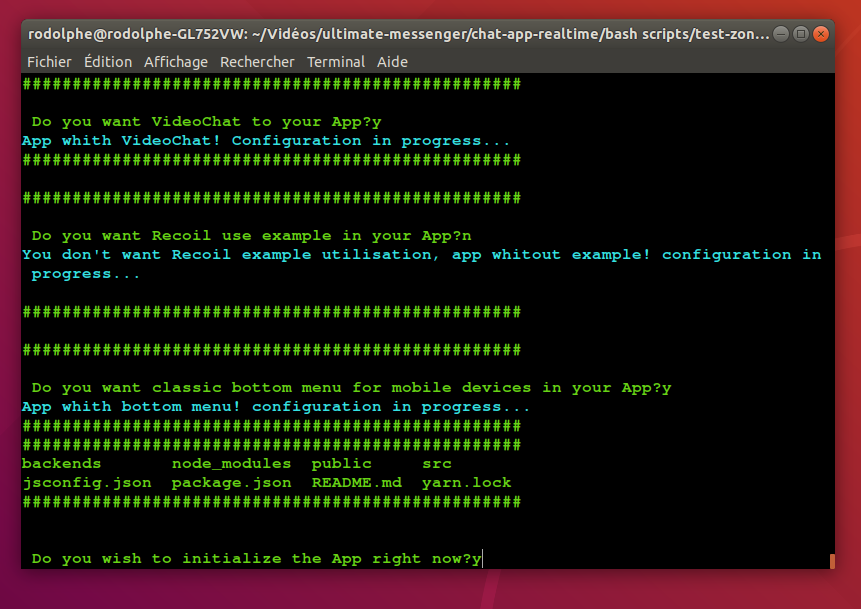

In this example, I choose the classic bottom menu. alt text

Initialization step!#

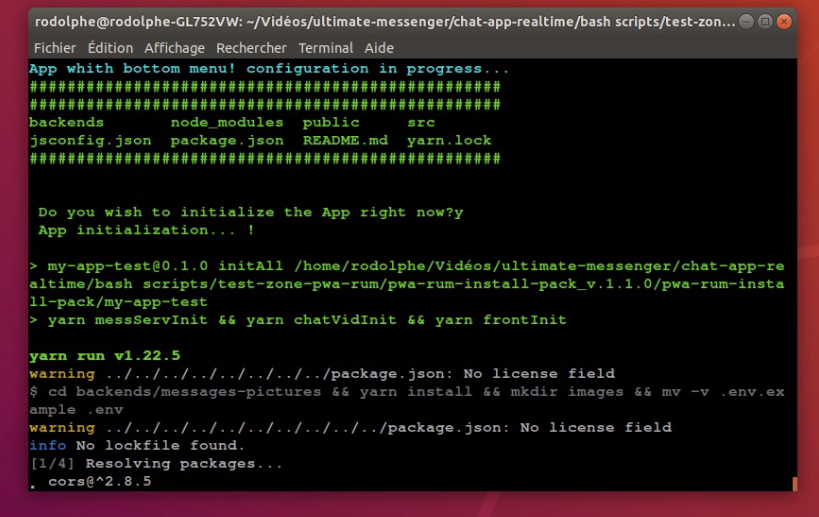

Then you have to initialize the application - You can do it manually (the steps are explained later in the documentation) but using this script is highly recommended for simplicity. alt text

What happens during the initialization?#

The script starts by going to the backend folder of the message-pictures server to install the dependencies, then an images folder is created and finally the .env.example file is renamed to .env. alt text

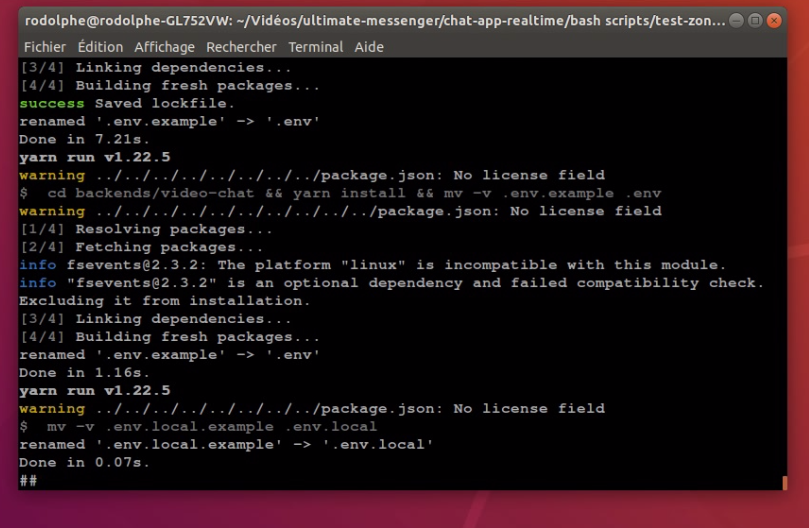

Then he goes to the video-chat folder (still in the backend folder) to install the dependencies and rename the env. file like in the previous folder. And finally, it goes to the root folder of the application to rename the .env.local.example to .env.local file. alt text

Manual initialization!#

If you have not initialized the application through the script, this step is for you.

I have written several scripts in the package.json file so that the initialization is simple and fast.

How to do it?#

You have to open the folder with the terminal, in this example I use VSCode to do that. then, once at the root of the application, enter

npm run initAll

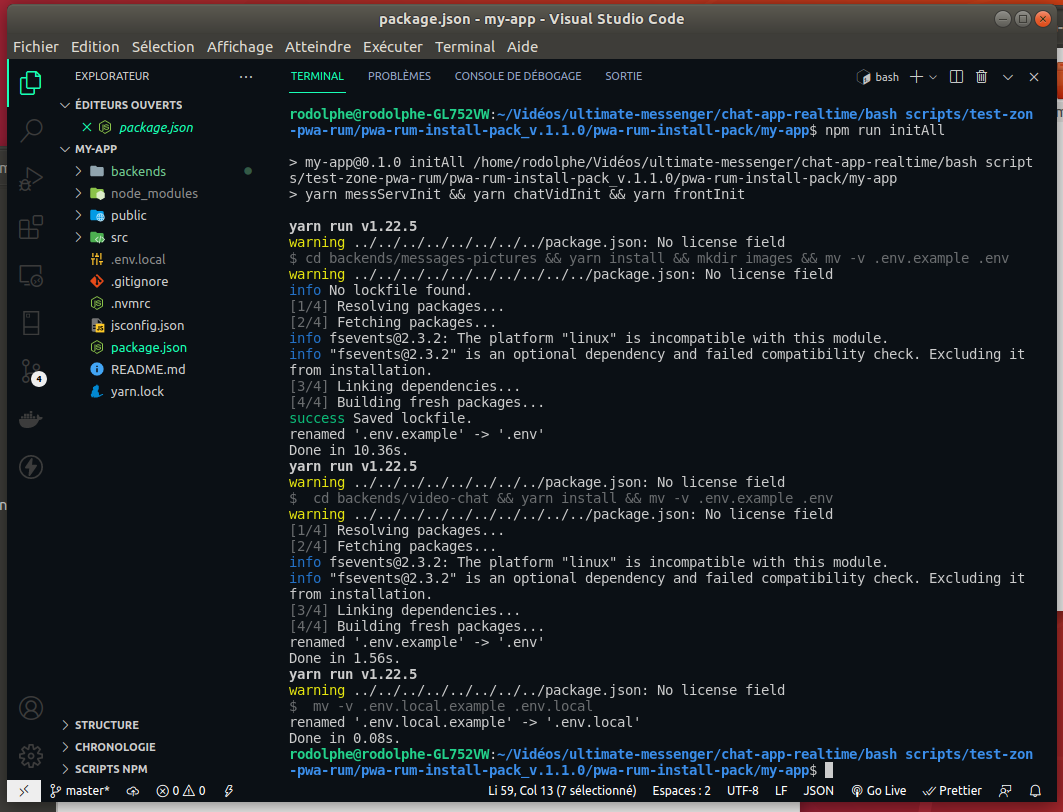

in the console then execute the command. alt text

the script then runs exactly the same way as the initialization step* of the installation script. alt text

*refer to What happens during the initialization section

open the App!#

Open with VSCode or not & start the App right now or not!#

In this example I choose to open it with vs code but if you answer no, then the script will ask you if you want to start the app now via the current console. alt text

Test the application after initialization!#

You can start the app simply by running

npm run dev

This will start the messages-pictures server on port 4000, the video-chat server on port 4001 and then the react application on port classic 3000.

You can access the application at the usual address:

http://localhost:3000

Local test only#

You can test locally (a classic window + a window in private navigation) || (a window of a browser "Chrome for example" + a window of another browser "Firefox for example"). Or you can test your local version with one of the demo versions.

Local with online version Test#

If you have any cors problems when you try the online version with your local version!

You can add Allow CORS:Access-Control-Allow-Origin chrome extension for easily add rule to the response header.

In this example I will test my local version with the demo version with radial menu here

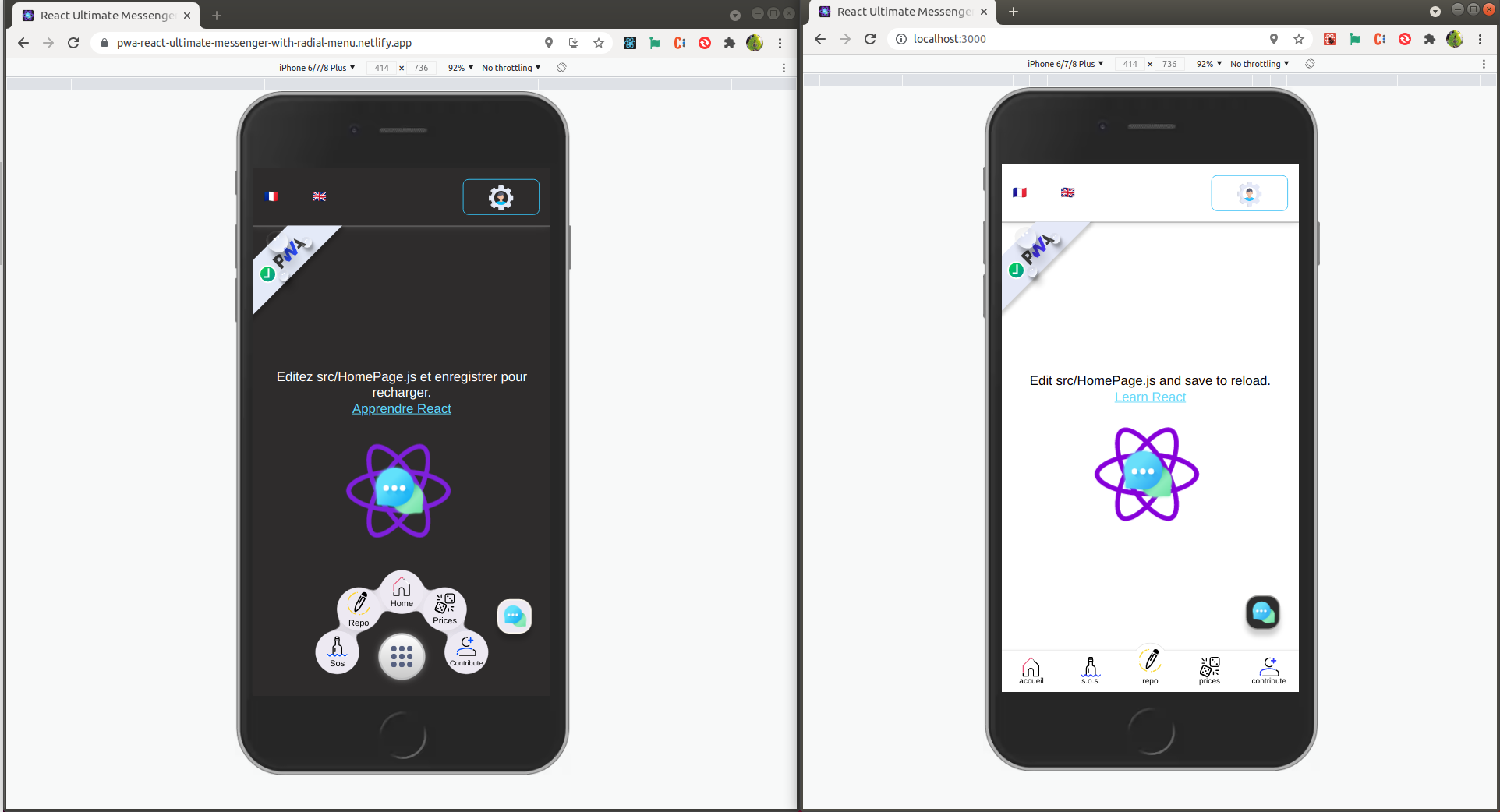

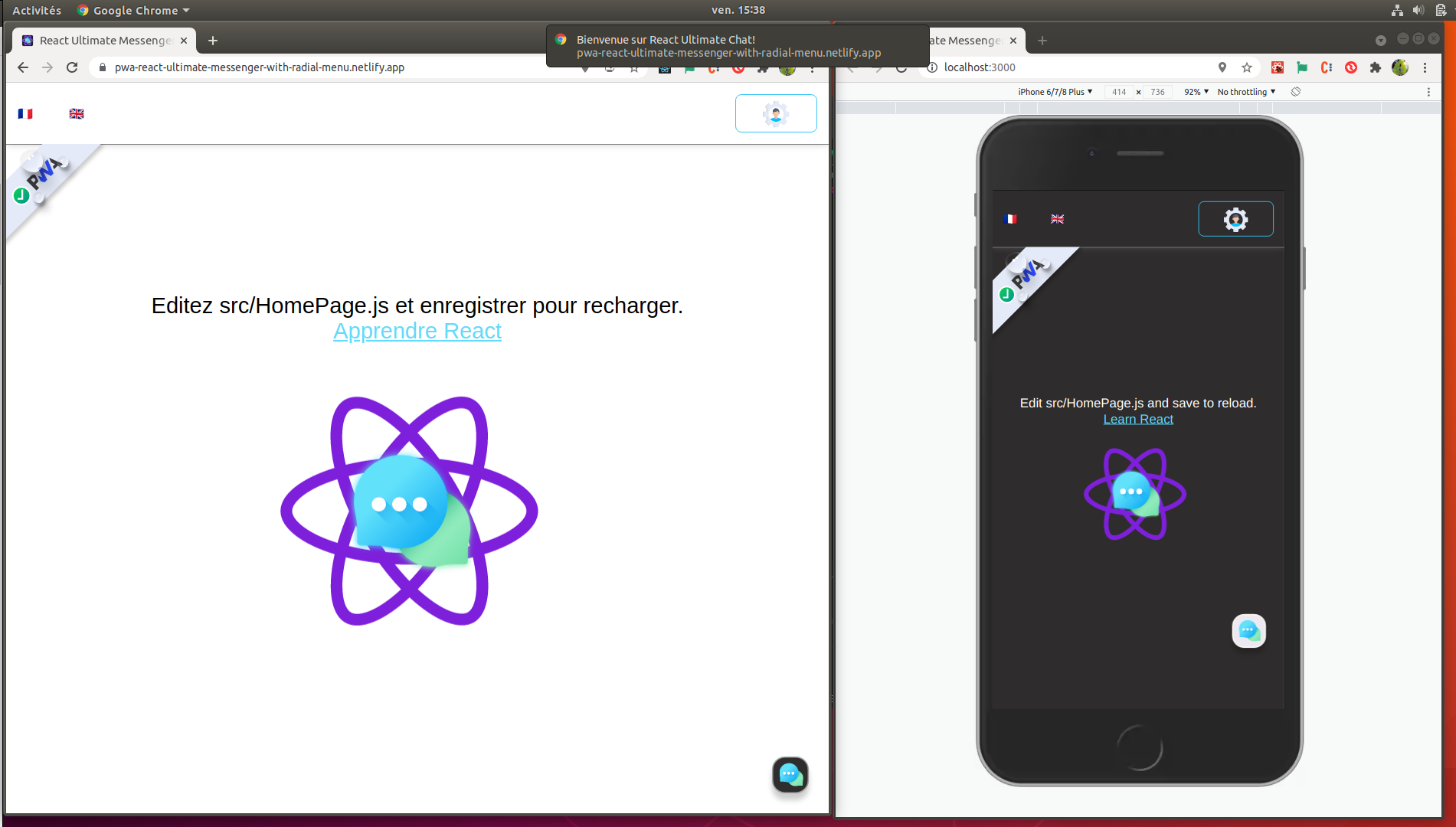

I open my local version (localhost:3000) in a window and the online version in another window. alt text

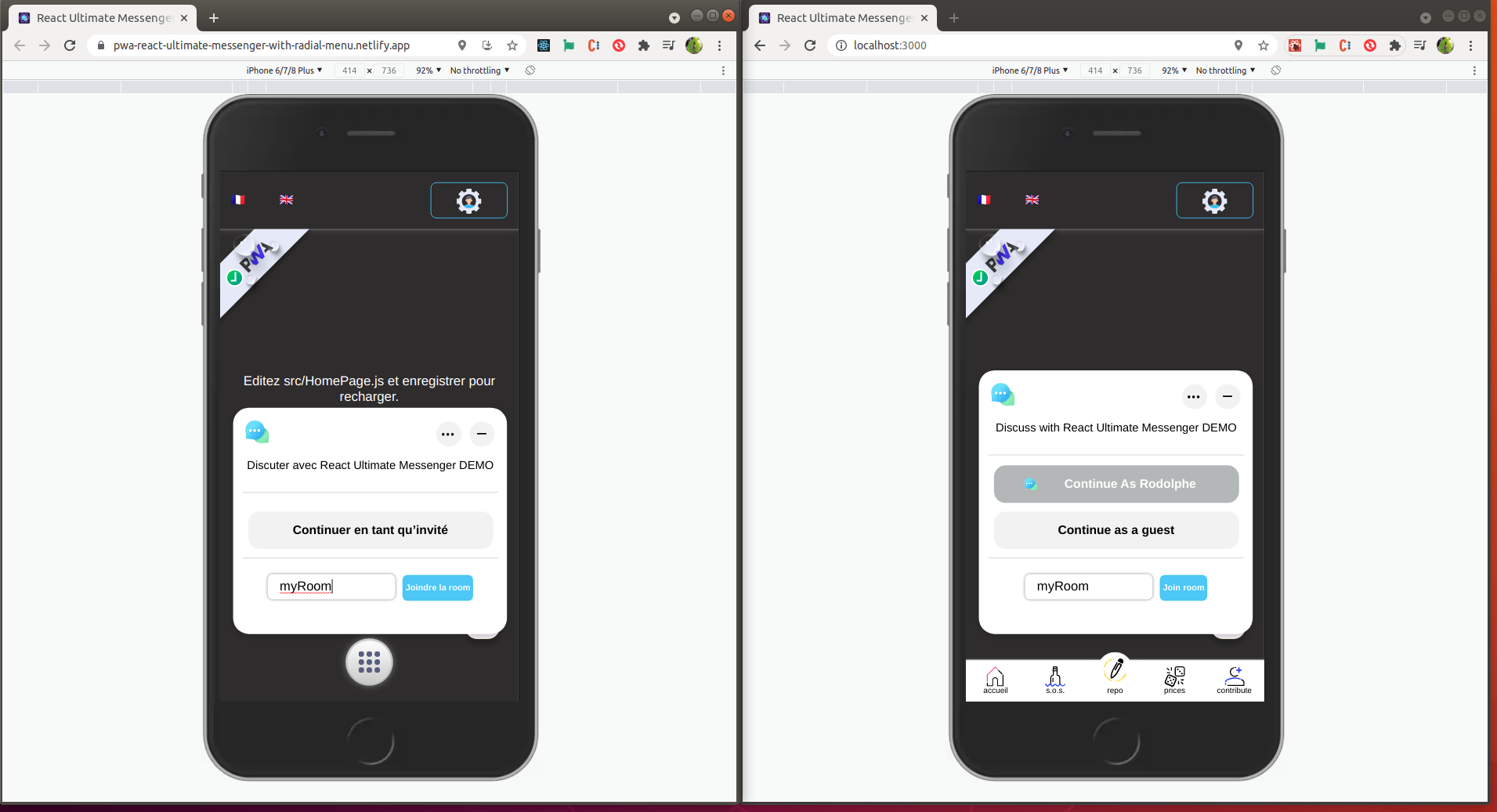

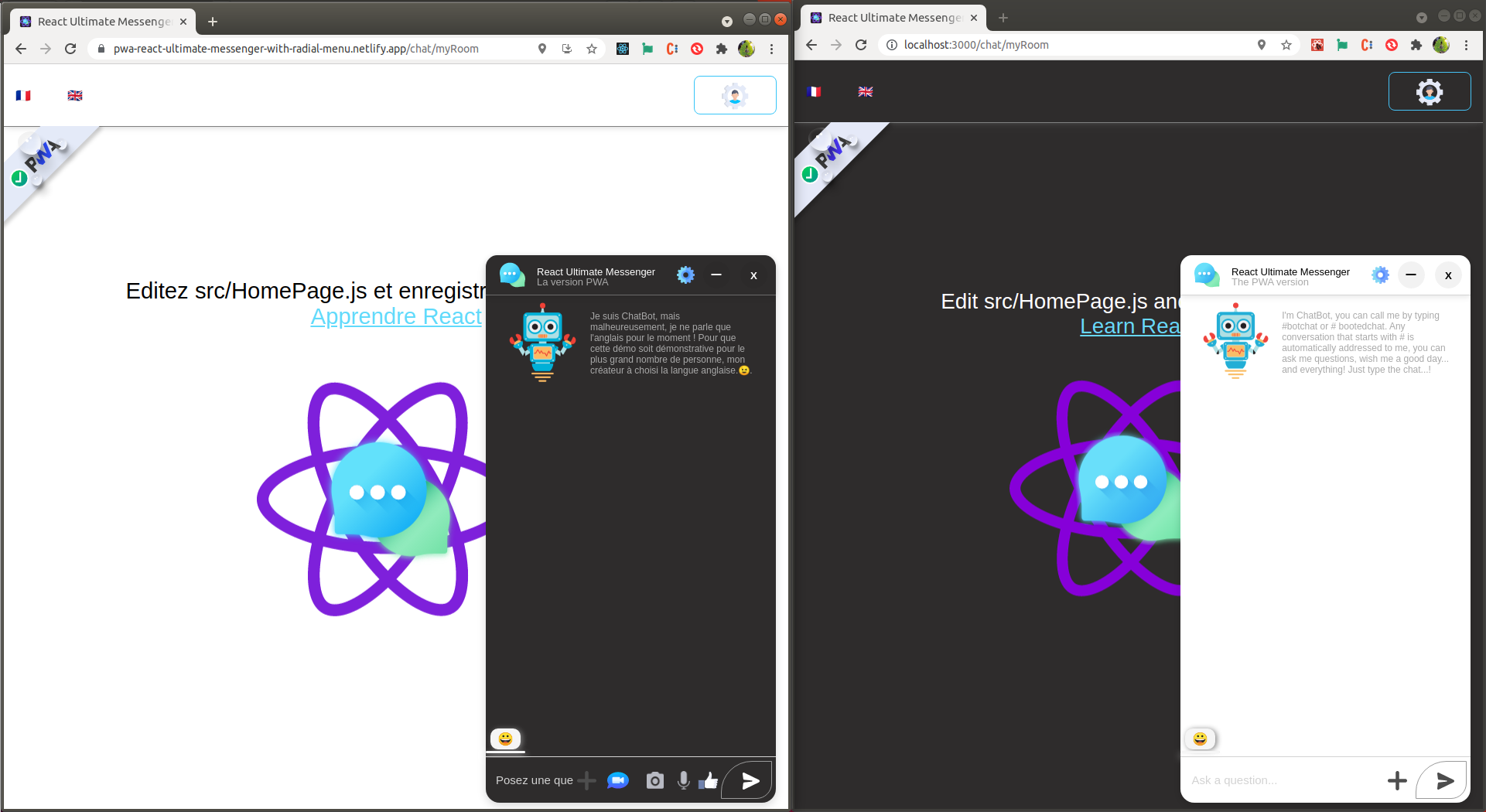

Then I connect to the same Room in both windows. alt text

You can notice the dark and light theme of the application, as well as the toolbar (at the bottom of the chat window) unfolded and folded on the image below. alt text

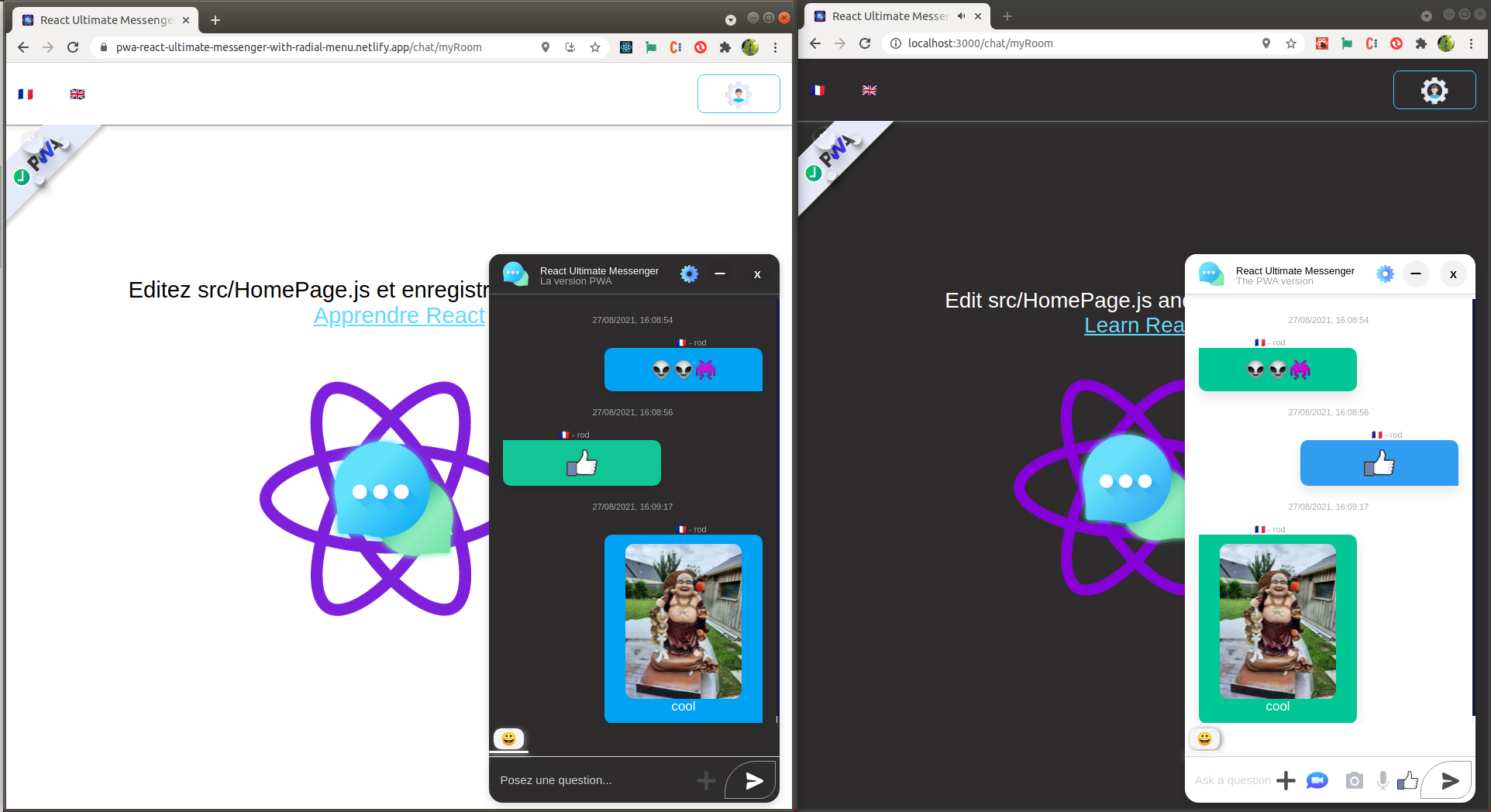

Sending message, emoji, thumb up or image works perfectly. alt text

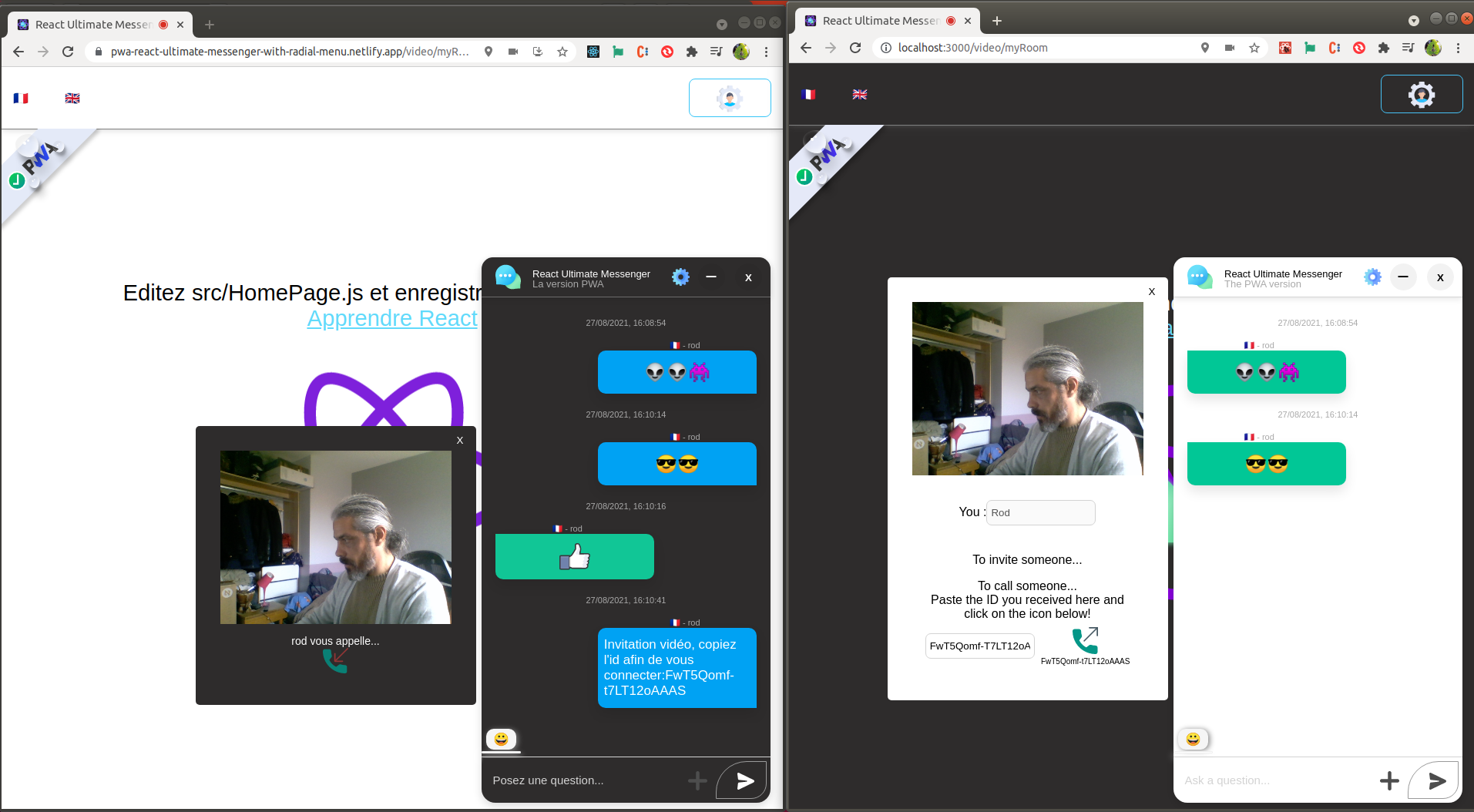

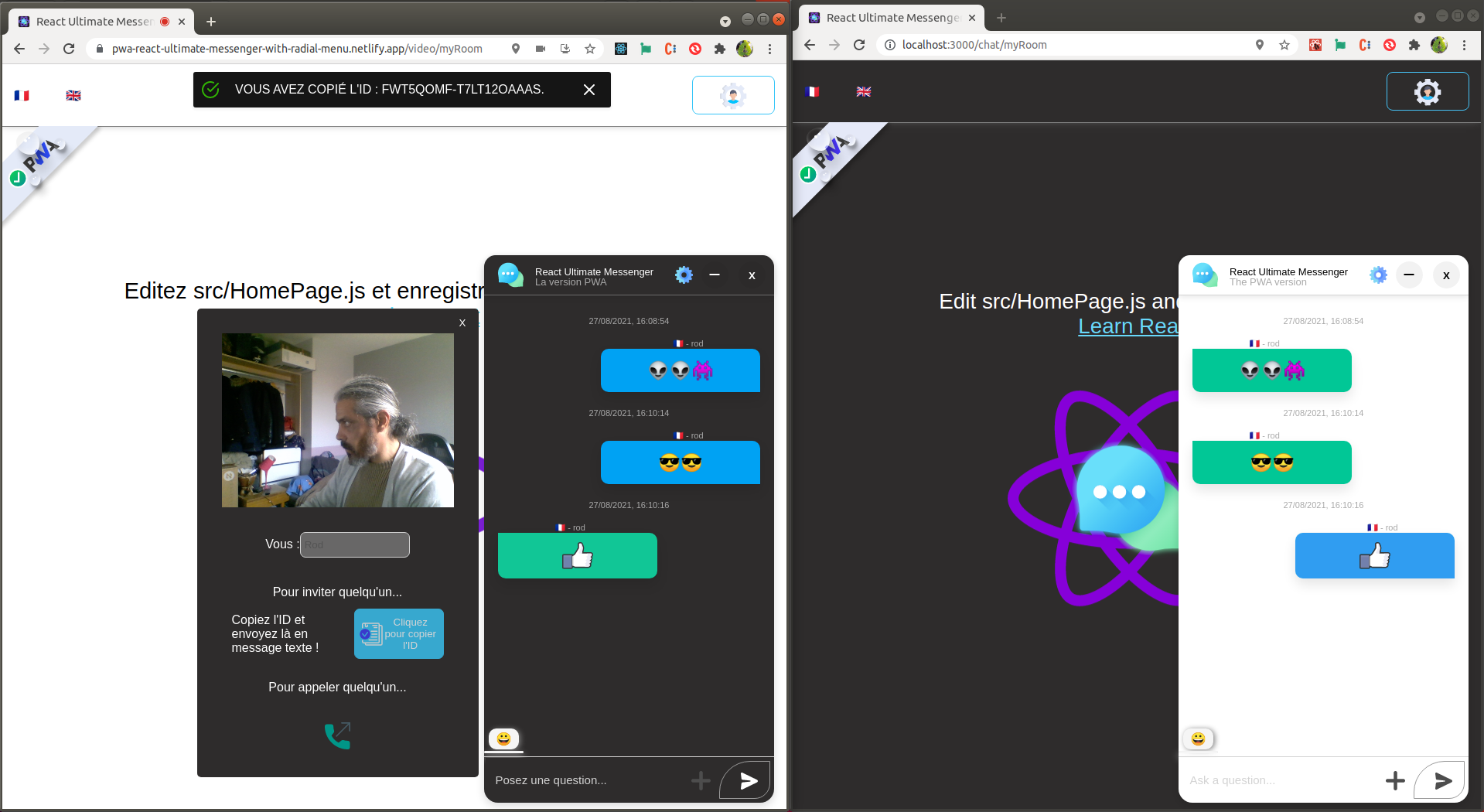

The video chat function is simple, to invite someone, click on the "Click to copy id" button, the invitation id is copied automatically, alt text

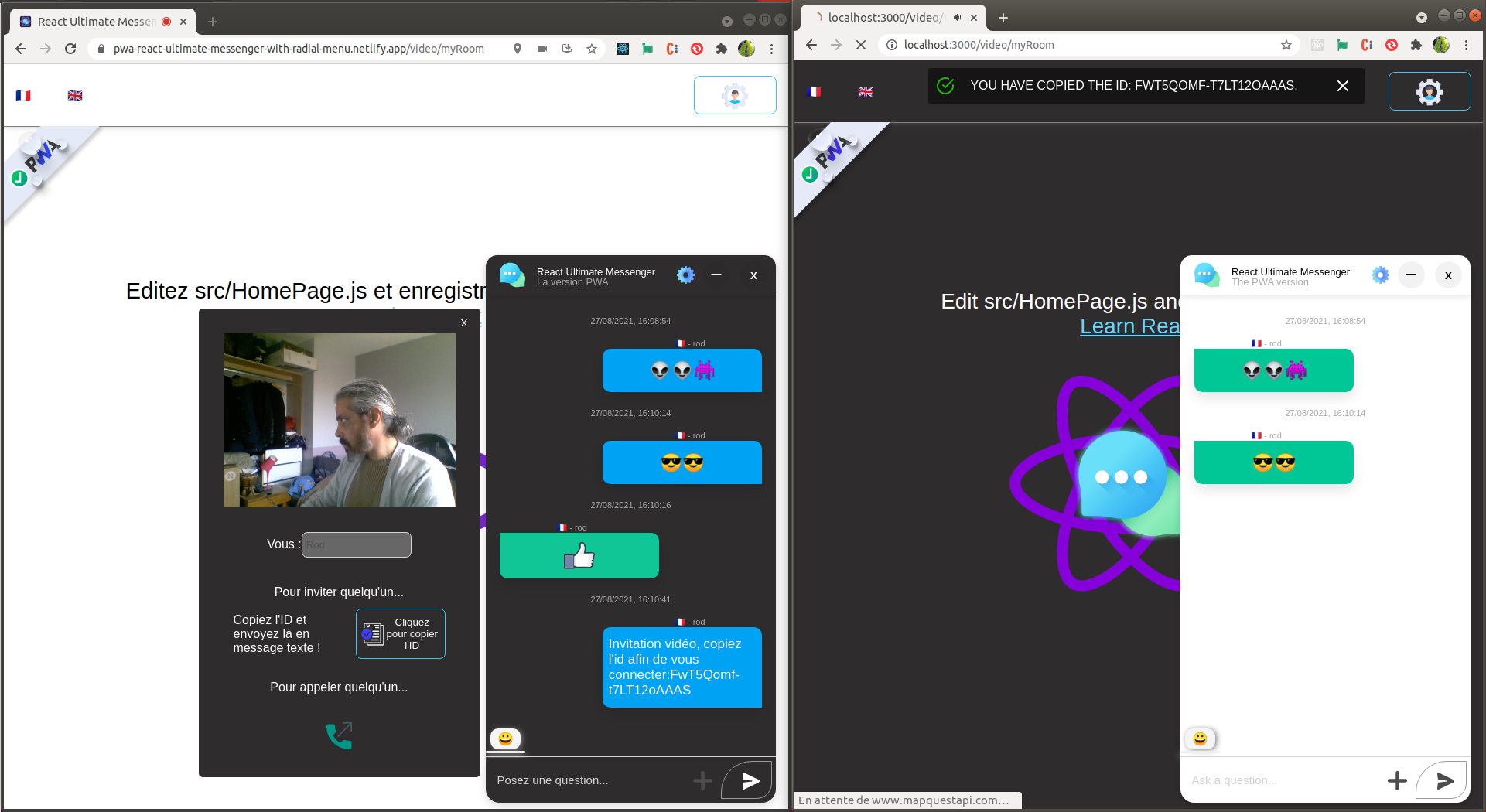

then paste what you just copied into the message area and send it to the other user. Once the invitation is received, the user clicks on it, it copies the id, deletes the message and automatically redirects to the video chat (receiver only). alt text

The user who received the invitation just has to paste the id in the appropriate field and then click on the phone icon to start the call. alt text

Once the call is in progress, a red icon appears, this is the icon to hang up after the conversation. alt text

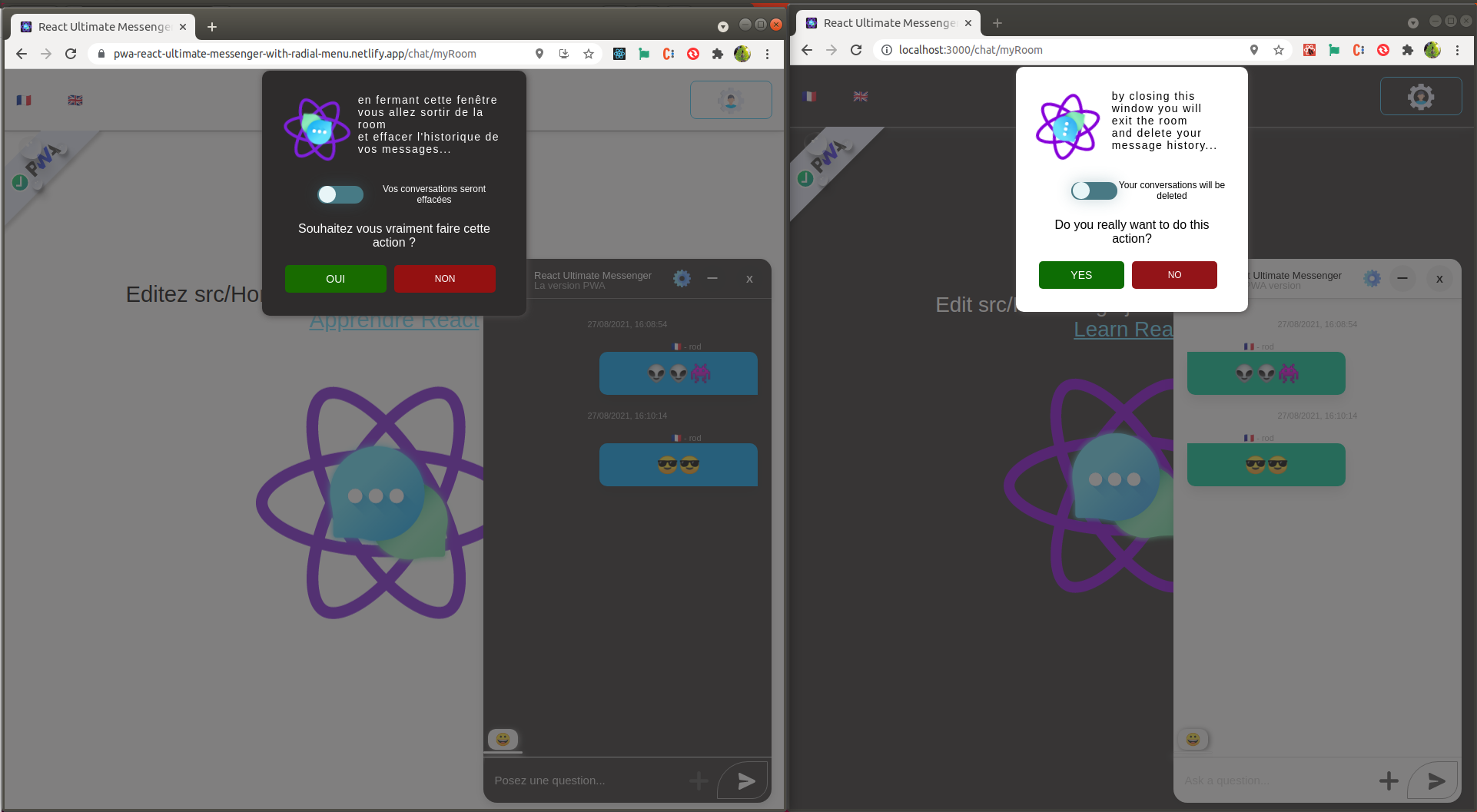

When you click on the icon to close the chat window, an alert will appear to inform you that you are leaving the room, if conversations are present, a checkbox will appear to ask you if you want to keep or delete the conversions. alt text

The application is fully responsive of course. alt text

Ok, the test runs are ok...

Now let's look at the structure of the application...#
