How the messages component work?
Type of messages!#
You can send 5 type of messages:#
- 1 - Send classic text message with keyboard of course.
- 2 - Send emoji with bubble animation.
- 3 - Send picture (jpg or png only) with comment text .
- 4 - Message text from speech recognition.
- 5 - Thumbs up with little animation.
In total, there are 6 types of messages with the videoChat component, but I don't talk about this type of message in this chapter, for the video chat, see the next chapter...
1 - How classic text messages work?#
All message types go through this feature (by newMessage state in frontend) when sending.
Backend.#
Environment variables for messages server#
# .env----------------------FRONTEND_URL="http://localhost:3000"SOCKET_MESSAGES_UPLOAD_PORT=4000Socket.io server.#
// server.js----------------------
...
// import socket.io & cors security for chatconst io = require("socket.io")(server, { cors: { origin: process.env.PORT || process.env.FRONTEND_URL, },});
...
// socket.io Eventsconst NEW_CHAT_MESSAGE_EVENT = "newChatMessage";const START_TYPING_MESSAGE_EVENT = "START_TYPING_MESSAGE_EVENT";const STOP_TYPING_MESSAGE_EVENT = "STOP_TYPING_MESSAGE_EVENT";// port for socket.io messagesconst PORT = process.env.SOCKET_MESSAGES_UPLOAD_PORT;// init socket connectionio.on("connection", (socket) => { // Join a conversation const { roomId } = socket.handshake.query; socket.join(roomId);
// Listen for new messages socket.on(NEW_CHAT_MESSAGE_EVENT, (data) => { io.in(roomId).emit(NEW_CHAT_MESSAGE_EVENT, data); });
// Listen start typing events socket.on(START_TYPING_MESSAGE_EVENT, (data) => { console.log("Received true on server :", data); io.in(roomId).emit(START_TYPING_MESSAGE_EVENT, data); }); // Listen stop typing events socket.on(STOP_TYPING_MESSAGE_EVENT, (data) => { console.log("Received false on server :", data); io.in(roomId).emit(STOP_TYPING_MESSAGE_EVENT, data); });
// Leave the room if the user closes the socket socket.on("disconnect", () => { socket.leave(roomId); });});...Frontend.#
Socket.io connexion.#
Environment variable for socket.io server connexion#
REACT_APP_SOCKET_WEBSERVICE=http://localhost:4000The logic is in useChat customHook#
// useChat.js----------------------// MODULES IMPORTSimport { useEffect, useRef, useState } from "react";import { useRecoilState } from "recoil";import socketIOClient from "socket.io-client";// STATEMANAGMENT IMPORTSimport roomIdAtom from "chatComponents/stateManager/atoms/roomIdAtom";...
// socket.io Eventsconst NEW_CHAT_MESSAGE_EVENT = "newChatMessage"; // Name of the eventconst SOCKET_SERVER_URL = `${process.env.REACT_APP_SOCKET_WEBSERVICE}`;const START_TYPING_MESSAGE_EVENT = "START_TYPING_MESSAGE_EVENT";const STOP_TYPING_MESSAGE_EVENT = "STOP_TYPING_MESSAGE_EVENT";
const useChat = () => { ... const [messages, setMessages] = useState([]); // Sent and received messages const socketRef = useRef(); const [dateTime, setDateTime] = useState(""); const [newMessage, setNewMessage] = useState(""); // Message to be sent const [isTaping, setIsTaping] = useState(false); const [senderIdNotif, setSenderIdNotif] = useState(""); const [senderIdTyping, setSenderIdTyping] = useState(""); const [roomId] = useRecoilState(roomIdAtom); const [writingUsers, setWritingUsers] = useState({ senderId: "", isTaping: false, }); ...
useEffect(() => { // Creates a WebSocket connection socketRef.current = socketIOClient(SOCKET_SERVER_URL, { query: { roomId }, });
// Listens for incoming messages socketRef.current.on(NEW_CHAT_MESSAGE_EVENT, (message) => { const incomingMessage = { ...message, ownedByCurrentUser: message.senderId === socketRef.current.id, }; console.log("socket :", socketRef); setMessages((messages) => [...messages, incomingMessage]); }); // Start typing message animation socketRef.current.on(START_TYPING_MESSAGE_EVENT, (typingInfo) => { if (typingInfo.senderId !== socketRef.current.id) { const isWrite = typingInfo; setSenderIdNotif(isWrite.senderId); setWritingUsers(isWrite); } }); // Stop typing message animation socketRef.current.on(STOP_TYPING_MESSAGE_EVENT, (typingInfo) => { if (typingInfo.senderId !== socketRef.current.id) { setSenderIdTyping(typingInfo.isTaping); const isWrite = typingInfo; setWritingUsers(isWrite); } });
// Destroys the socket reference // when the connection is closed return () => { socketRef.current.disconnect(); }; }, [roomId]);
// Sends a message to the server that // forwards it to all users in the same room const sendMessage = (messageBody) => { // This is where the object containing the message is built socketRef.current.emit(NEW_CHAT_MESSAGE_EVENT, { // FOR EXAMPLE: // body: messageBody, // senderId: socketRef.current.id, // timeStamp: dateTime, });
...
}; // START TYPING NOTIFICATION const startTypingMessage = () => { if (!socketRef.current) return; socketRef.current.emit(START_TYPING_MESSAGE_EVENT, { senderId: socketRef.current.id, isTaping: true, }); }; // STOP TYPING NOTIFICATION const stopTypingMessage = () => { if (!socketRef.current) return; socketRef.current.emit(STOP_TYPING_MESSAGE_EVENT, { senderId: socketRef.current.id, isTaping: false, }); };
...
useEffect(() => { // If the messages array is in localStorage, then set Messages with all messages. if (localStorage.getItem("messages") !== null) { setMessages(JSON.parse(localStorage.getItem("messages"))); } // If is typing, start typing animation if (isTaping) { startTypingMessage(); } else { stopTypingMessage(); setSenderIdNotif(""); setSenderIdTyping(false); } }, [isTaping]);
return { ... messages, setMessages, sendMessage, dateTime, setDateTime, newMessage, setNewMessage, isTaping, setIsTaping, socketRef, writingUsers, senderIdNotif, senderIdTyping, };};
export default useChat;
Send & receipt messages with useChat customHook#
Let's see to the socket.io working in chatRoom component#
// chatRoom.js----------------------...import roomIdAtom from "chatComponents/stateManager/atoms/roomIdAtom";...
const ChatRoom = (props) => { ... const [roomToken, setRoomToken] = useRecoilState(roomIdAtom); ... let roomId = { roomToken }; ... const { messages, setMessages, sendMessage, dateTime, setDateTime, newMessage, setNewMessage, isTaping, setIsTaping, ... writingUsers, senderIdNotif, senderIdTyping, ... } = useChat(roomId); // Creates a websocket and manages messaging ... const [ownedByMe, setOwnedByMe] = useState(false); ...
// set date for each message let d = new Date(); let n = d.toLocaleString();
// Primitif useEffect hook for roomToken gestion (state & session storage) useEffect(() => { if (!roomToken && sessionStorage.getItem("roomName") !== null) { setRoomToken(sessionStorage.getItem("roomName")); } if (roomToken) { sessionStorage.setItem("roomName", roomToken); } if (!roomToken && !sessionStorage.getItem("roomName")) { const roomId = props.match.params; // Gets roomId from URL setRoomToken(roomId.roomToken); } ... // Function equal to componentDidUnmount return () => { setRoomToken(""); sessionStorage.removeItem("roomName"); };
}, []);
// Scroll to bottom messages list function const scrollToBottom = () => { messagesEndRef.current?.scrollIntoView({ behavior: "smooth" }); };
useEffect(() => { // If messages List is more than 4 --> auto scrool to the bottom if (messages.length >= 4) { scrollToBottom(); } ... }, [messages, userAllInfos]);
// New message section const handleNewMessageChange = (event) => { // If not media, set the new message with the target value if (!isReceiveMediaToUser) { setNewMessage(event.target.value); } ... };
...
// Function to send content message input with one click to the enter key on keyboard const handleKeypress = (e) => { //it triggers by pressing the enter key if (e.code === "Enter" || e.code === "NumpadEnter") { handleSendMessage(); } };
... // Function for sending NewMessage to messages array const handleSendMessage = (e) => { // If the input is empty, is equal to preventDefault() if (newMessage === "") { return; } // If newMessage(input field) is not empty, send message if (newMessage !== "") { ... setDateTime(n); sendMessage(newMessage); setNewMessage(""); setIsTaping(false); ... } ... }; ... };
...
// The typing animation function const handleTypingInput = () => { if (!isTaping) { setplusSection(false); setIsTaping(true); setTimeout(() => { setIsTaping(false); }, 2000); } }; ...
useEffect(() => { // For knowing if the message is sended by you or the other user messages.map((message, i) => setOwnedByMe(message.ownedByCurrentUser)); // Function for getting time for each message function getDateTime() { setDateTime(n); } getDateTime();
// Set to the localStorage the messages array of objects localStorage.setItem("messages", JSON.stringify(messages));
... }, [ ... messages, dateTime, n, setDateTime, setNewMessage, ]);
...
// Typing animation function with conditions & return div that content the dot-typing animation function IsTyping() { if (clickedChevron) { setTimeout(() => { setIsTaping(false); }, 4000); } if (!clickedChevron) { setTimeout(() => { setIsTaping(false); }, 10000); } if (senderIdTyping) { setTimeout(() => { setIsTaping(false); }, 4000); } return <div className="dot-typing" />; }
...
return ( <Fragment> ... <HeaderChatComponent /> ... <MessagesComponents /> ... <BottomChatComponent /> </Fragment> );};
export default ChatRoom;
now let see the MessagesComponent.js file:#
// MessagesComponent.js----------------------...
const MessagesComponent = (props) => { ... // All of this props come from ChatRoom Component const { messages, ... messagesEndRef, ... } = props; return ( <div> <ol className="messages-list"> {messages.map((message, i) => { return ( <span key={i} className="messages-section"> ...
<ul className="message-date">{message.timeStamp}</ul> ... <li style={{ position: "relative" }} className={`message-item ${ message.ownedByCurrentUser ? "my-message" : "received-message" }`} > ... <p style={{ fontSize: 23, marginTop: 0, marginBottom: 0, }} > {message.body} </p>
... </li>
</span> <div ref={messagesEndRef} /> </span> ); })} </ol> </div> );};
export default MessagesComponent;
And for finish, see the BottomChatComponent file#
// BottomChatComponent.js----------------------...// All of this props come from ChatRoom Componentconst BottomChatComponent = (props) => { const { ... handleSendMessage, ... handleKeypress, setIsTaping, ... handleNewMessageChange, newMessage, handleTypingInput, ... } = props;
return ( <div> ... <input disabled={isLoaded ? true : false} autoComplete="off" onSelect={handleTypingInput} id="chat-message-input" onKeyPress={handleKeypress} value={newMessage} onChange={handleNewMessageChange} placeholder={t("placeholderInputChat")} className={ !selectedDarkTheme ? "new-message-input-field light-background" : "new-message-input-field dark-background" } /> ... <button onClick={handleSendMessage} className="send-message-button"> {/*SVG button file here*/} </button> </span> </div> </div> </div> );};
export default BottomChatComponent;
2 - How emoji's message work?#
emoji's component.#
npm package.#
Link to npm package Here
Component in the App#

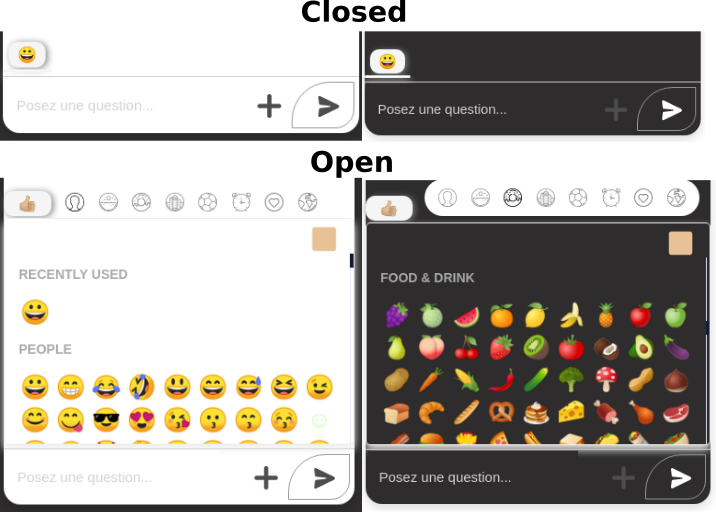

The component look like this:
usercase.#
// BottomChatComponent.js----------------------...import Picker, { SKIN_TONE_MEDIUM_LIGHT } from "emoji-picker-react";...// All of this props come from ChatRoom Componentconst BottomChatComponent = (props) => { const { ... onEmojiClick, clickedChevron, handleClickChevron, } = props;
return ( <div> ... <button onClick={handleClickChevron} className="chevron"> {!clickedChevron ? "👍🏼" : "😀"} </button> <Picker onEmojiClick={onEmojiClick} disableAutoFocus={true} skinTone={SKIN_TONE_MEDIUM_LIGHT} groupNames={{ smileys_people: "PEOPLE" }} native /> ... </div> );};
export default BottomChatComponent;
Sending emoji in new message#
// useChat.js----------------------... // FUNCTION FOR KNOWING IF MESSAGE.BODY CONTENT ALPHANUMERIC OR EMOJI const regEmoji = newMessage;
function isNotAlphaNumeric(str) { /* Iterating character by character to get ASCII code for each character */ for (let i = 0, len = str.length, code = 0; i < len; ++i) { /* Collecting charCode from i index value in a string */ code = str.charCodeAt(i);
/* Validating charCode falls into anyone category */ if ( (code > 47 && code < 58) || // numeric (0-9) (code > 64 && code < 91) || // upper alpha (A-Z) (code > 96 && code < 123) // lower alpha (a-z) ) { /* If its' alphanumeric characters then returning false */ return false; // if you want true when alphanumeric only decomment this line && comment the top line // continue; }
continue; // if you want true when alphanumeric only decomment this line && comment the top line // return false; }
/* After validating all the characters and we returning success message ( IF NOT ALPHANUMERIC (EMOJI) CONTENT IS RETURN TRUE ELSE RETURN FALSE)*/ return true; }
// Sends a message to the server that // forwards it to all users in the same room const sendMessage = (messageBody) => { socketRef.current.emit(NEW_CHAT_MESSAGE_EVENT, { ... isEmoji: isNotAlphaNumeric(regEmoji), ... }); ... };In ChatRoom component
// ChatRoom.js----------------------
import useChat from "chatComponents/hooks/useChat";...import MessagesComponents from "./components/MessagesComponent";import BottomChatComponent from "./components/BottomChatComponent";import HeaderChatComponent from "./components/HeaderChatComponent";...
const ChatRoom = (props) => { ... const { messages, setMessages, sendMessage, ... newMessage, setNewMessage, ... isNotAlphaNumeric, } = useChat(roomId); // Creates a websocket and manages messaging
... const [chosenEmoji, setChosenEmoji] = useState(null); const [clickedChevron, setClickedChevron] = useState(true);
...
// This function is for display or hidden the emoji's section const handleClickChevron = () => { if (!clickedChevron) { setClickedChevron(true); } if (clickedChevron) { setClickedChevron(false); setplusSection(false); } // If the emoji's section is open, that display the typing animation for the other chat users if (clickedChevron) { setIsTaping(true); } if (!clickedChevron) { setIsTaping(false); } };
...
// Function for setting the newMessage with emoji const onEmojiClick = (event, emojiObject) => { setChosenEmoji(emojiObject); // If you have already one message text --> add emoji to the text if (newMessage) { setNewMessage(newMessage + emojiObject.emoji); // If you don't have any message text, then set the emoji to newMessage state } else if (!newMessage) { setNewMessage(emojiObject.emoji); } };
...
return ( <Fragment> ... <HeaderChatComponent /> ... <MessagesComponents /> ... <BottomChatComponent /> ... </Fragment> );};
export default ChatRoom;
Bubble animation.#
Lets see the messagesComponent emoji section!
// MessagesComponent.js----------------------...
const MessagesComponent = (props) => { ... const { ..., isNotAlphaNumeric, ... } = props;
return ( <div> <ol className="messages-list"> {messages.map((message, i) => { return ( <span key={i} className="messages-section"> <span> ... <li style={{ position: "relative" }} className={`message-item ${ isNotAlphaNumeric(message.body) ? "height45 jello" : "" } ${ message.ownedByCurrentUser ? "my-message" : "received-message" }`} ... >
<span className="messagesContent"> ... {isNotAlphaNumeric(message.body) && ( <p style={{ fontSize: 23, marginTop: 0, marginBottom: 0, }} > {message.body} </p> )} </span> )} ... </li> ... </span> ... </span> ); })} </ol> </div> );};
export default MessagesComponent;
The css section:
/* chatRoom.css */----------------------.jello { animation: jello-horizontal 0.9s both;}
@keyframes jello-horizontal { 0% { transform: scale3d(1, 1, 1); } 30% { transform: scale3d(1.15, 0.65, 1); } 40% { transform: scale3d(0.75, 1.15, 1); } 50% { transform: scale3d(1.05, 0.85, 1); } 65% { transform: scale3d(0.95, 1.02, 1); } 75% { transform: scale3d(1.02, 0.95, 1); } 100% { transform: scale3d(1, 1, 1); }}
3 - How picture message work?#
Backend.#
I use Multer & util for this part,
if you dont kwon how is Multer see this link Here
if you dont know how is util, see this link Here
Structure of this Section#
Tree structure of src folder#
# messages-pictures/src/----------------------src ├── controller │ └── file.controller.js ├── middleware │ └── upload.js └── routes └── index.js// messages-pictures/server.js----------------------
...
// UPLOAD PICTURES SECTIONglobal.__basedir = __dirname;// cors option for upload servervar corsOptions = { origin: process.env.FRONTEND_URL,};
app.use(cors(corsOptions));// routes for upload picture serverconst initRoutes = require("./src/routes");// middleware fro upload pictureapp.use(express.json());app.use(express.urlencoded({ extended: true }));initRoutes(app);
...
The upload part in middleware folder#
// messages-pictures/middleware/upload.js----------------------const util = require("util");const multer = require("multer");// You can limit max size of the picture (2Mb is this case)const maxSize = 2 * 1024 * 1024;
let storage = multer.diskStorage({ destination: (req, file, cb) => {
cb(null, __basedir + "/images/"); }, filename: (req, file, cb) => { console.log(file.originalname); cb(null, file.originalname); },});
let uploadFile = multer({ storage: storage, limits: { fileSize: maxSize },}).single("file");
let uploadFileMiddleware = util.promisify(uploadFile);module.exports = uploadFileMiddleware;Routes file for upload & get images for displaying by frontend.#
// messages-pictures/routes/index.js----------------------...const controller = require("../controller/file.controller");
let routes = (app) => { // Upload route router.post("/upload", controller.upload); ... // Upload single file by name route router.get("/files/:name", controller.download);
...};
...The controller#
This component allows you to check some specifications during the sending steps (size of the image for example), of consultation of the images present (if you wish to make a GET {for the admin dashboard for example} of the list of images with the infos specific to each of them), or of the downloading of the image via the front-end.
// messages-pictures/controller/file.controller.js----------------------...
// This section is implemented if you want to inform the user with messages during the upload stage.const upload = async (req, res) => { try { await uploadFile(req, res);
if (req.file === undefined) { return res.status(400).send({ message: "Please upload a file!" }); }
res.status(200).send({ message: "Uploaded the file successfully: " + req.file.originalname, }); } catch (err) { if (err.code === "LIMIT_FILE_SIZE") { return res.status(500).send({ message: "File size cannot be larger than 2MB!", }); }
res.status(500).send({ message: `Could not upload the file: ${req.file.originalname}. ${err}`, }); }};
// This section is for getting images list with infos (name & url) of all files.const getListFiles = (req, res) => { const directoryPath = __basedir + "/images/";
fs.readdir(directoryPath, function (err, files) { if (err) { res.status(500).send({ message: "Unable to scan files!", }); }
let fileInfos = [];
files.forEach((file) => { fileInfos.push({ name: file, url: directoryPath + file, }); });
res.status(200).send(fileInfos); });};
// This section is for downloading the picture.const download = (req, res) => { const fileName = req.params.name; const directoryPath = __basedir + "/images/";
res.download(directoryPath + fileName, fileName, (err) => { if (err) { res.status(500).send({ message: "Could not download the file. " + err, }); } });};
...
Frontend.#
Create axios service
// src/chatComponents/http-common.js----------------------import axios from "axios";
export default axios.create({ baseURL: `${process.env.REACT_APP_UPLOAD_WEBSERVICE}`, headers: { "Content-type": "application/json", },});
Create fetch service (post & get)
// src/services/FileUploadService.js----------------------import http from "chatComponents/http-common";
class FileUploadService { upload(file, onUploadProgress) { let formData = new FormData();
formData.append("file", file);
return http.post("/upload", formData, { headers: { "Content-Type": "multipart/form-data", }, onUploadProgress, }); }
getFiles() { return http.get("/files"); }}
export default new FileUploadService();
picture component.#

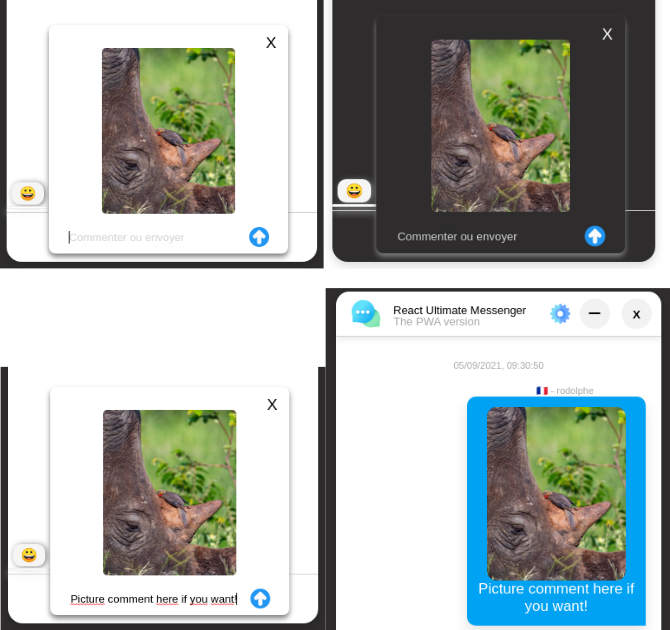

This component look like this:
The code behind it
// src/chatComponents/services/FileUploadService.js----------------------...import UploadService from "chatComponents/services/FileUploadService";...import seeMediaAtom from "chatComponents/stateManager/atoms/seeMediaAtom";import roomIdAtom from "chatComponents/stateManager/atoms/roomIdAtom";import fileFromPictureAtom from "chatComponents/stateManager/atoms/fileFromPictureAtom";import isReceivedMediasMessageToUserAtom from "chatComponents/stateManager/atoms/receiveMediasMessageToUserAtom";import imageInfoAtom from "chatComponents/stateManager/atoms/imageInfoAtom";...
const UploadImages = ({ handleSendMessage, setIsTaping }) => { const [state, setState] = useRecoilState(fileFromPictureAtom); ... const [isReceiveMediaToUser, setIsReceiveMediaToUser] = useRecoilState( isReceivedMediasMessageToUserAtom ); ... const [isImageList, setIsImageList] = useRecoilState(imageInfoAtom); const { setNewMessage, pictComment, setPictComment } = useChat(roomIdAtom); const [seingPict] = useRecoilState(seeMediaAtom);
useEffect(() => { UploadService.getFiles().then((response) => { setState({ imageInfos: response.data, }); setIsImageList({ imageInfos: response.data, }); }); }, [setState, setIsImageList, isReceiveMediaToUser]);
...
function selectFile(e) { setState({ currentFile: e.target.files[0], previewImage: URL.createObjectURL(e.target.files[0]), progress: 0, message: "", });
setNewMessage(isImageList.currentFile?.name); }
function upload() { setState({ progress: 0, });
UploadService.upload(state.currentFile, (e) => { setState({ progress: Math.round((100 * e.loaded) / e.total), }); }) .then((response) => { setState({ message: response.data.message, }); return UploadService.getFiles(); }) .then((files) => { setState({ imageInfos: files.data, }); }) .catch((err) => { console.log(err); setState({ progress: 0, message: "Could not upload the image!", currentFile: undefined, }); });
setIsReceiveMediaToUser(true); setPlusSection(false);
setTimeout(() => { handleSendMessage(); }, 800); }
const { previewImage } = state; return ( <div> {previewImage && ( <div className={ selectedDarkTheme ? "preview-container dark-background" : "preview-container" } > <div className="preview-modal-head"> <h1 style={{ cursor: "pointer" }} className="closed-preview-img" onClick={() => { setState({ previewImage: undefined }); window.location.reload(); }} > X </h1> </div> <img style={{ maxWidth: 190, maxHeight: 200 }} className="preview-picture-content" src={previewImage} alt="" /> <hr style={{ width: "100%", color: "#000" }} /> <div className="comment-picture-bottom"> <input autoComplete="off" className={selectedDarkTheme ? "dark-background white" : ""} style={{ outline: "none", border: "none" }} type="text" value={pictComment} onSelect={() => { setIsTaping(true); }} onKeyPress={handleKeypress} placeholder="Commenter ou envoyer" onChange={(e) => setPictComment(e.target.value)} autoFocus /> <img onClick={upload} className="up-arrow" src={upArrow} alt="" /> </div> </div> )}
<div className="row"> {!previewImage && ( <div className="col-8"> <input placeholder="click" type="file" accept="image/png, image/jpeg" onChange={selectFile} id="actual-btn" hidden /> {seingPict && ( <label className="label-custom-button-upload" htmlFor="actual-btn" > <div className="tooltip"> <img style={{ width: 22, height: 22 }} src={camera} alt="camera" /> <span style={{ fontSize: 12, padding: 10 }} className="tooltiptext" > image au format jpg et png seulement ! </span> </div> </label> )} </div> )} </div> </div> );};
export default UploadImages;
Display to MessagesComponent by chatRoom messages component.#
// src/chatComponents/components/chatRoom/ChatRoom/ChatRoom.js----------------------...import UploadService from "chatComponents/components/FileUploadService";... // Primitif hook for displaying picture on the messages list after is sended to the server useEffect(() => { UploadService.getFiles().then((response) => { setState({ imageInfos: response.data, }); }); }, [setState]); ... useEffect(() => { // For knowing if the message is sended by you or the other user messages.map((message, i) => setOwnedByMe(message.ownedByCurrentUser)); ... // If the current file (picture) name exist, then --> automatic set The newMessage state with the picture name if (state.currentFile?.name) { setNewMessage(state.currentFile?.name); }
if (messages) { setFilePictFromList(isImageList.imageInfos.map((resLink) => resLink)); setFilePictFromMess(messages.map((resBody) => resBody.body)); } }, [ messages, ... isImageList, setNewMessage, state, ]);
return( ... <MessagesComponents /> <BottomComponent /> )
See the MessagesComponent
// src/chatComponents/components/chatRoom/ChatRoom/components/MessagesComponent.js----------------------...
const MessagesComponent = (props) => { ... const { ... messages, seingMedia, ... } = props;
return ( <div> <ol className="messages-list"> {messages.map((message, i) => { return ( <span key={i} className="messages-section"> <span> ... <ul className="message-date">{message.timeStamp}</ul> ... <li> ... {message.body?.includes("jpg", 0) || message.body?.includes("JPG", 0) || message.body?.includes("jpeg", 0) || message.body?.includes("JPEG", 0) || message.body?.includes("png", 0) || message.body?.includes("PNG", 0) ? ( <Fragment> {seingMedia ? ( <span className="display-picture"> <img style={{ borderRadius: 11, maxWidth: 186, maxHeight: 200, }} src={`${process.env.REACT_APP_UPLOAD_WEBSERVICE}/files/${message.body}`} alt="" /> {message.comment && ( <Fragment> <p style={{ textAlign: "center" }}> {message.comment} </p> </Fragment> )} {!toggleDeleteButton && <div ref={messagesEndRef} />} </span> )} ... </Fragment> ) :( ... ) : ( ... )} </li> ... </span> ); })} </ol> </div> );};
export default MessagesComponent;
4 - How Speech to text message work?#
npm package.#
I use React-speech-recognition for doing that!
Link to npm package.
The component!#
This component look like this:
usercase.#
The SpeechToText Component#
// src/chatComponents/components/speech-recognition/SpeechToText.js----------------------// CSS IMPORTSimport "./speechToText.css";// HOOKS IMPORTSimport useSpeechToText from "chatComponents/hooks/useSpeechToText";// ASSETS IMPORTSimport microPhoneIcon from "chatComponents/assets/micro.png";
const SpeechToText = () => { const { isListening, microphoneRef, handleListing, stopHandle } = useSpeechToText();
return ( <div className="microphone-wrapper"> <div className="mircophone-container"> {!isListening ? ( <div style={{ cursor: "pointer" }} className="microphone-icon-container" ref={microphoneRef} onClick={handleListing} > <img src={microPhoneIcon} alt="micro" style={{ width: 16, margin: 10 }} className="microphone-icon" /> </div> ) : ( <div style={{ cursor: "pointer" }} className="microphone-icon-container-on heartbeat" ref={microphoneRef} onClick={stopHandle} > <img src={microPhoneIcon} alt="micro" style={{ width: 16, margin: "14px 0px 0px 14px" }} className="microphone-icon" /> </div> )} </div> </div> );};export default SpeechToText;
BottomChatComponent#
// src/chatComponents/components/chatRoom/ChatRoom/components/BottomChatComponent.js----------------------import SpeechToText from "chatComponents/components/speech-recognition/SpeechToText";
const BottomChatComponent = (props) => { ... return ( <div> ... <span className={plusSection ? "" : "hiddenParams"}> <SpeechToText /> </span> ... </div> )}...SpeechToText customHook#
// src/chatComponents/hooks/useSpeechToText.js----------------------// MODULES IMPORTSimport { useEffect, useRef } from "react";import SpeechRecognition, { useSpeechRecognition,} from "react-speech-recognition";import { useRecoilState } from "recoil";// HOOKS IMPORTSimport useChat from "./useChat";// STATEMANAGMENT IMPORTSimport isListeningAtom from "chatComponents/stateManager/atoms/isListeningAtom";import speechToTextAtom from "chatComponents/stateManager/atoms/speechToTextAtom";import roomIdAtom from "chatComponents/stateManager/atoms/roomIdAtom";import isLanguageAtom from "chatComponents/stateManager/atoms/isLanguageAtom";
const useSpeechToText = () => { const [isListening, setIsListening] = useRecoilState(isListeningAtom); const microphoneRef = useRef(null); const { setIsTaping, setNewMessage } = useChat(roomIdAtom); const [speechToTextConversion, setSpeechToTextConversion] = useRecoilState(speechToTextAtom); const [isLanguage] = useRecoilState(isLanguageAtom);
const { transcript, resetTranscript, browserSupportsSpeechRecognition } = useSpeechRecognition();
const handleListing = () => { ... SpeechRecognition.startListening({ continuous: true, language: isLanguage === "fr" ? "fr-FR" : isLanguage === "pt" ? "pt-br" : "en-GB", }); }; const stopHandle = () => { ... SpeechRecognition.stopListening(); setSpeechToTextConversion(transcript); resetTranscript(); };
...
if (!browserSupportsSpeechRecognition) { return <span>Browser doesn't support speech recognition.</span>; } return { isListening, microphoneRef, handleListing, stopHandle, };};
...
In ChatRoom component#
// src/chatComponents/components/chatRoom/ChatRoom/ChatRoom.js----------------------import { useSpeechRecognition } from "react-speech-recognition";import { useRecoilState } from "recoil";...const ChatRoom = (props) => { ... const { resetTranscript } = useSpeechRecognition(); const [speechToTextConversion, setSpeechToTextConversion] = useRecoilState(speechToTextAtom); ...
useEffect(() => { // If the message come from speech to text functionality // That set NewMessage state with the transcription content if (speechToTextConversion !== "") { setNewMessage(speechToTextConversion); }
}, [speechToTextConversion]);
...
// If newMessage(input field) is not empty, send message and... if (newMessage !== "") { ... // erase text converted to input field setSpeechToTextConversion(""); ... // And reset transcript content resetTranscript(); } ...
return ( <Fragment> ... </Fragment> )}
5 - How Thumbs up message work?#
Logic.#
This picture is not sended to the backend, only the name of the picture is sended in body content message (by newMessage state like all other messages features)
Explanations.#

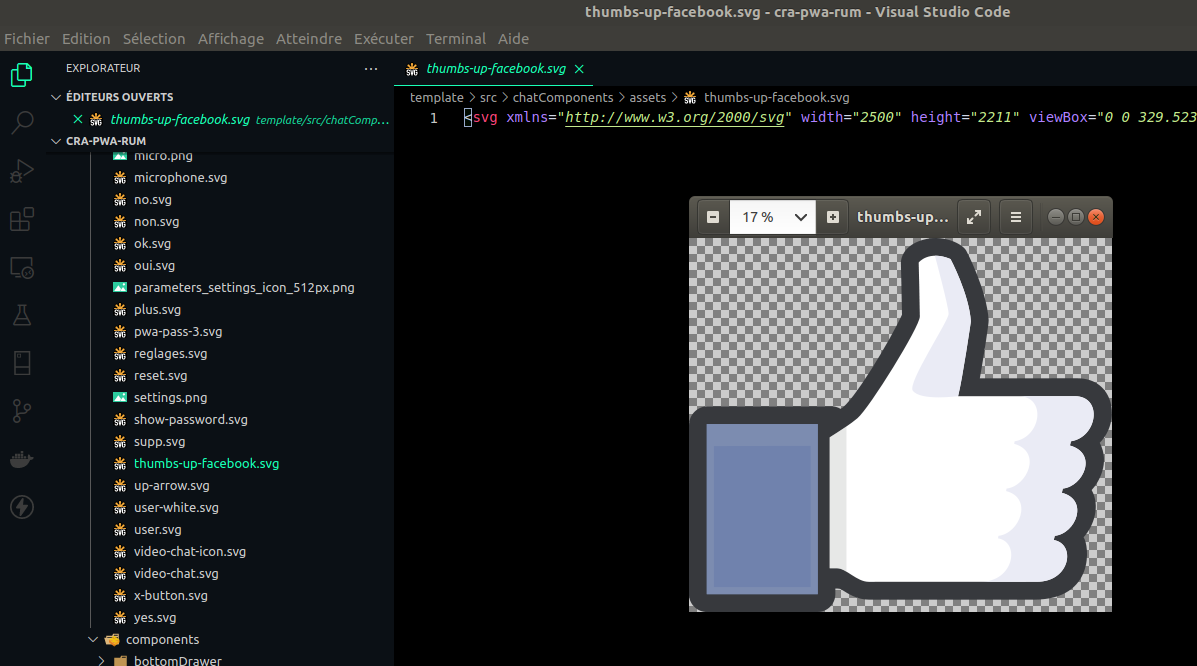

The svg picture#
The logic in ChatRoom component#
// src/chatComponents/components/chatRoom/ChatRoom/ChatRoom.js----------------------...import Thumb from "chatComponents/assets/thumbs-up-facebook.svg";...const ChatRoom = (props) => { ... const [isSendThumb, setIsSendThumb] = useState(false); ... // FOR SENDING MESSAGE BY NEWMESSAGE STATE // Thumbs up facebook message functionality, set the values here const handleSendThumb = () => { setIsSendThumb(true); setNewMessage("thumbs-up-facebook.svg"); }; ... // IF NEWMESSAGE CONTAIN THE PICTURE NAME useEffect(() => { // Thumbs up facebook message functionality, send the message here if (newMessage.includes("thumbs-up-facebook.svg")) { setTimeout(() => { sendMessage(newMessage); setNewMessage(""); }, 300); }
}, [newMessage]); ... return ( <MessagesComponents ... Thumb={Thumb} ... /> ... <BottomChatComponent ... Thumb={Thumb} handleSendThumb={handleSendThumb} ... /> ... )}...Sending the picture in BottomChatComponent#
// src/chatComponents/components/chatRoom/ChatRoom/components/BottomChatComponent.js----------------------const BottomChatComponent = (props) => { const { ... Thumb, handleSendThumb, ... } = props; return ( ... <span className={plusSection ? "" : "hiddenParams"} onClick={handleSendThumb} > <img style={{ width: 27, cursor: "pointer", marginRight: 15 }} src={Thumb} alt="thumb" /> </span> ... )}The Thumb Props in MessagesComponent#
// src/chatComponents/components/chatRoom/ChatRoom/components/MessagesComponent.js----------------------...const MessagesComponent = (props) => { ... const { ... Thumb, ... } = props; return ( ... {message.body.includes("thumbs-up-facebook.svg") && ( <img // shake-bottom is keyframes animation className="shake-bottom" style={{ width: 40, cursor: "pointer" }} src={Thumb} alt="thumb" /> )} ... )}Css animation#
/* src/chatComponents/components/chatRoom/ChatRoom/ChatRoom.css */----------------------.shake-bottom { animation: shake-bottom 2s cubic-bezier(0.455, 0.03, 0.515, 0.955) both;}@keyframes shake-bottom { 0%, 100% { transform: rotate(0deg); transform-origin: 50% 100%; } 10% { transform: rotate(2deg); } 20%, 40%, 60% { transform: rotate(-4deg); } 30%, 50%, 70% { transform: rotate(4deg); } 80% { transform: rotate(-2deg); } 90% { transform: rotate(2deg); }}Ok, right now, let see the video chat component!
